Stark, A. W.; Osadare, A.; Guo, M.; Gentsch, G. J.; Boettger, D.; Brehm, G. W.; Franke, C.

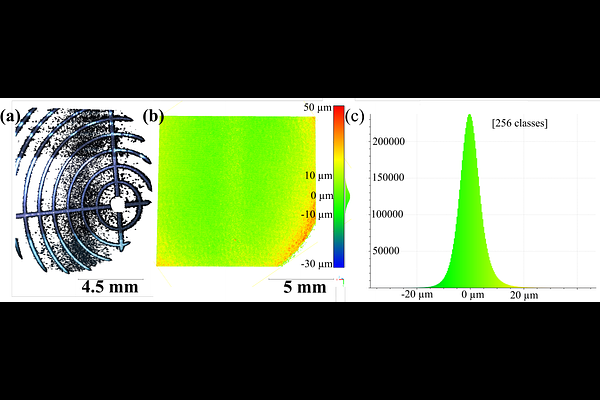

We present a straightforward, application-driven telecentric stereo 3D-measurement system for high-precision measurements, designed for applications ranging from industrial quality control to biological research including scanning of Lepidoptera moths. Utilizing a dual-camera setup with telecentric lenses and structured illumination, our system achieves lateral resolution of 8.0 m and axial resolution of 4.46 m in a measurement volume of 11 mm x 11 mm x 6 mm. We address challenges typically encountered when using standard libraries like OpenCV, e.g. in extrinsic parameter estimation using a dedicated calibration method that corrects for a potential model mismatch due to telecentricity. Our approach adapts existing methods, such as telecentric stereo vision and structured illumination, into an optimized, user-friendly system tailored for life science research, enabling detailed 3D reconstructions of scattering objects, such as small moths, with isotropic micrometer accuracy. This work presents an application-driven approach for biological 3D metrology by integrating existing technologies (telecentric stereo vision, structured illumination) into a specialized imaging platform suitable for non-invasive morphological studies. Unlike conventional CT or microscopic approaches, our method provides a balance of precision, scalability, and practical usability for non-expert users with the aim to study developmental changes in species under varying environmental conditions, while also methodically bridging the gap between macroscopic and microscopic resolution in biological imaging.
